The Fendt 500 Vario fourth generation series has the AGCO Power CORE50 engine, Fendt DynamicPerformance across all models and VarioDrive. New  features such as independent four-wheel drive, tyre pressure regulation system, Trailer Brake Assistant, drawbar lighting and reversible fan are available.

With four models, the Fendt 500 Vario Gen4 series covers a horsepower range from 134 to 164hp (99 - 121kW) according to ECE R120. Intelligent Fendt DynamicPerformance (DP) added power releases an additional 10hp (7kW) for all models if main and secondary units such as the PTO, fan, compressed air supply or air-conditioning require additional power.

The engine capacity combines Fendt iD low-speed with a nominal speed of only 1,900 rpm with high torque at a maximum of 792Nm on the Fendt 516 Vario model. Exhaust gases are treated with a diesel oxidation catalytic converter (DOC), diesel particulate filter (DPF) and with selective catalytic reduction (SCR). It meets the Level V emission standard. The engine is also approved for HVO100 and fuels according to DIN 15940. If the machine is operated with HVO, the CO2 footprint of the machine can be significantly reduced.

Model	Max. Power	Maximum power with DP according to ECE R120
Fendt 513 Vario	134hp (99kW)	144hp (106kW)
Fendt 514 Vario	144hp (106kW)	154hp (113kW)
Fendt 515 Vario	154hp (113kW)	164hp (121kW)
Fendt 516 Vario	164hp (121kW)	174hp (128kW)



The Fendt 500 Vario series has been used in grassland, on the field or in vegetable cultivation. VarioDrive available for the first time for compact standard tractors from 135 - 175hp The single-stage Fendt VarioDrive has permanent, independent four-wheel drive. This enables maximum traction and high soil protection on different subsoils and in curves. VarioDrive drives the front and rear axles independently of each other and distributes the power dynamically through Fendt Torque Distribution. Another advantage of VarioDrive is pull-in-turn effect. The independently driven front axle actively pulls the machine into the corner without torsion, resulting in a small turning circle with full tractive power.

Its low empty weight and permissible overall weight of 11.75t gives a high payload of 4.9t. The Fendt 500 Vario can be ballasted in the front, on the rear wheels and at the rear. Adjustable drawbar load of the or the K80 hitch has been increased to 3t. With a K80 hitch, up to 4t of drawbar load is possible.



More efficient work in arable farming

The Fendt 500 Vario series works efficiently in arable farming. Fendt DynamicPower provides more power when required. If the machine needs less power as a farm tractor, with a front loader, or less power when spraying, the engine works very economically due to Fendt iD.

A new 4-speed PTO meets the different requirements of all implements. Two economy PTOs work efficiently in the partial load range. The series is also designed for implements with a high hydraulic oil requirement. The tractor provides 110l or 152l hydraulic flow rates via up to 8 valves (4+3+1). Up to 9 valves are available in the Profi+ version (5+3+1 or 5+2+2).

Fendt VarioGrip, the fully integrated tyre pressure regulation system, has now been added to the Fendt 500 Vario. The appropriate tyre pressure can be set in the terminal. A higher tyre footprint increases the tractive power and reduces ground pressure.

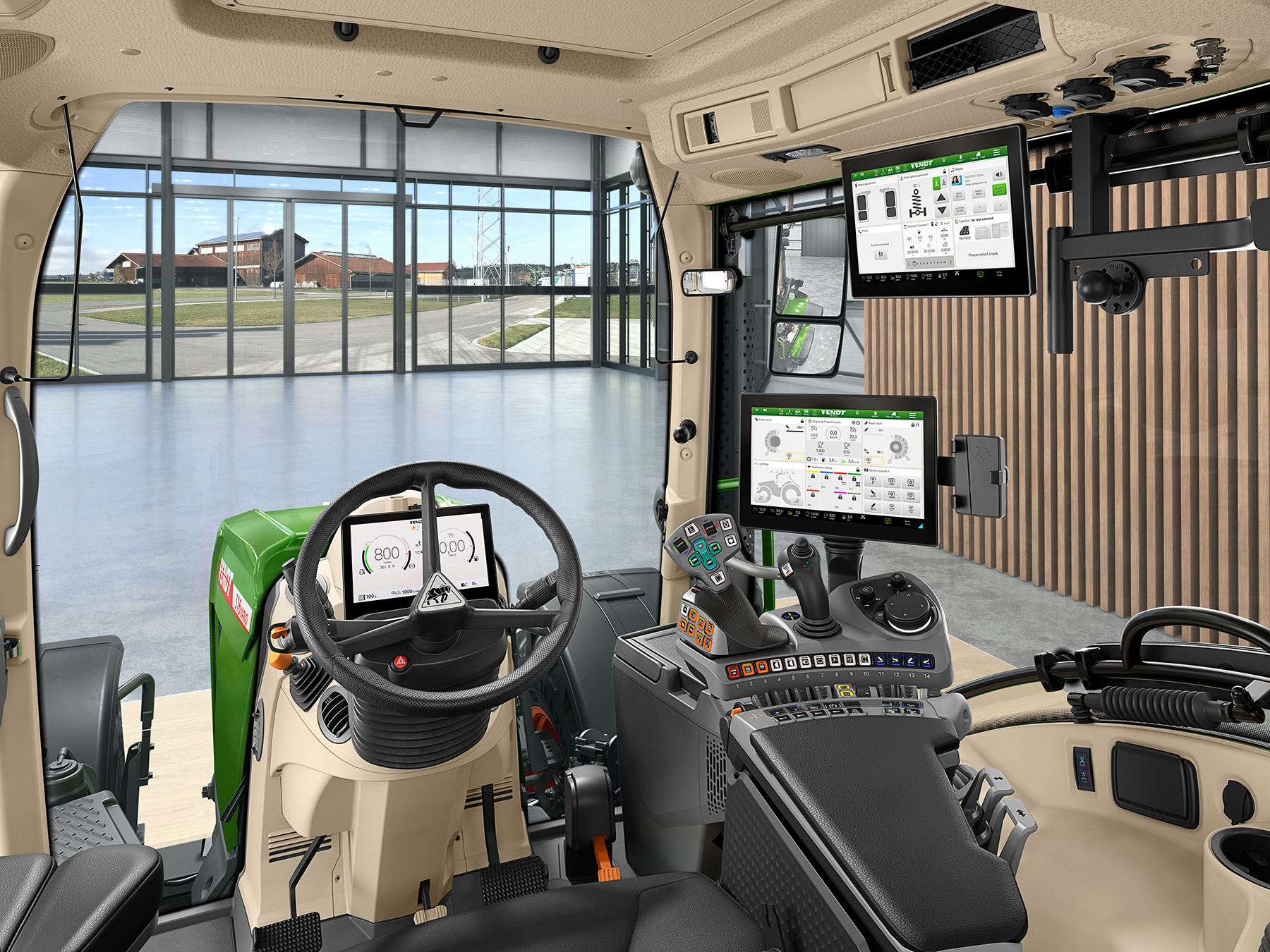

The Fendt 500 Vario is equipped with FendtONE as standard. The use with Fendt Guide enables precise work down to two centimetres, and also has an ISOBUS interface via the integrated terminals. FendtONE offboard offers ways to easily manage machines and drivers and plan the day’s work before it all starts from home. Features such as cameras for the bonnet and rear, the Trailer Brake Assistant or the heated laminated safety glass (LSG) front window help with working comfort.

Another new feature is the integration of Apple CarPlay into the Fendt infotainment via cable or Bluetooth, with operation via the terminal on the armrest. The software will be rolled out in June 2026.

Optional Fendt GroundVision drawbar lights the area directly at the rear of the machine, helping with visibility in field use, and helps with the attachment and detachment of implements in the dark.

The optional reversible fan that can be controlled via the FendtONE terminal is available for dusty operating conditions.

New generation of front loader

The Fendt Active overlay steering reduces turns required for full steering angles, making the Fendt 500 Vario ideal for front loader use.

The panoramic window in the Fendt VisioPlus cab ensures the best visibility even with a fully raised front loader. These lines of sight are of great when shunting and loading work on the courtyard, in narrow halls or on the field. Front window wipers have up to 300 degrees of wiping area and a side window wiper is also an option.

The new multi-coupler reduces pressure losses, has an automatic opening function that protects against contamination when not in use. Up to seven valves are available in the rear and front (5+2).

Powerful in maintenance work

The Fendt 500 Vario series has high ground clearance with maintenance tyres, and can carry out pesticide or fertilisation without damaging crops.

A cab designed for protection category 4 is available from the factory. The optional system protects the driver against dust, and vapours. It meets all legal requirements of the EU standard EN15695. The basic model cab meets all standards of protection category 2.

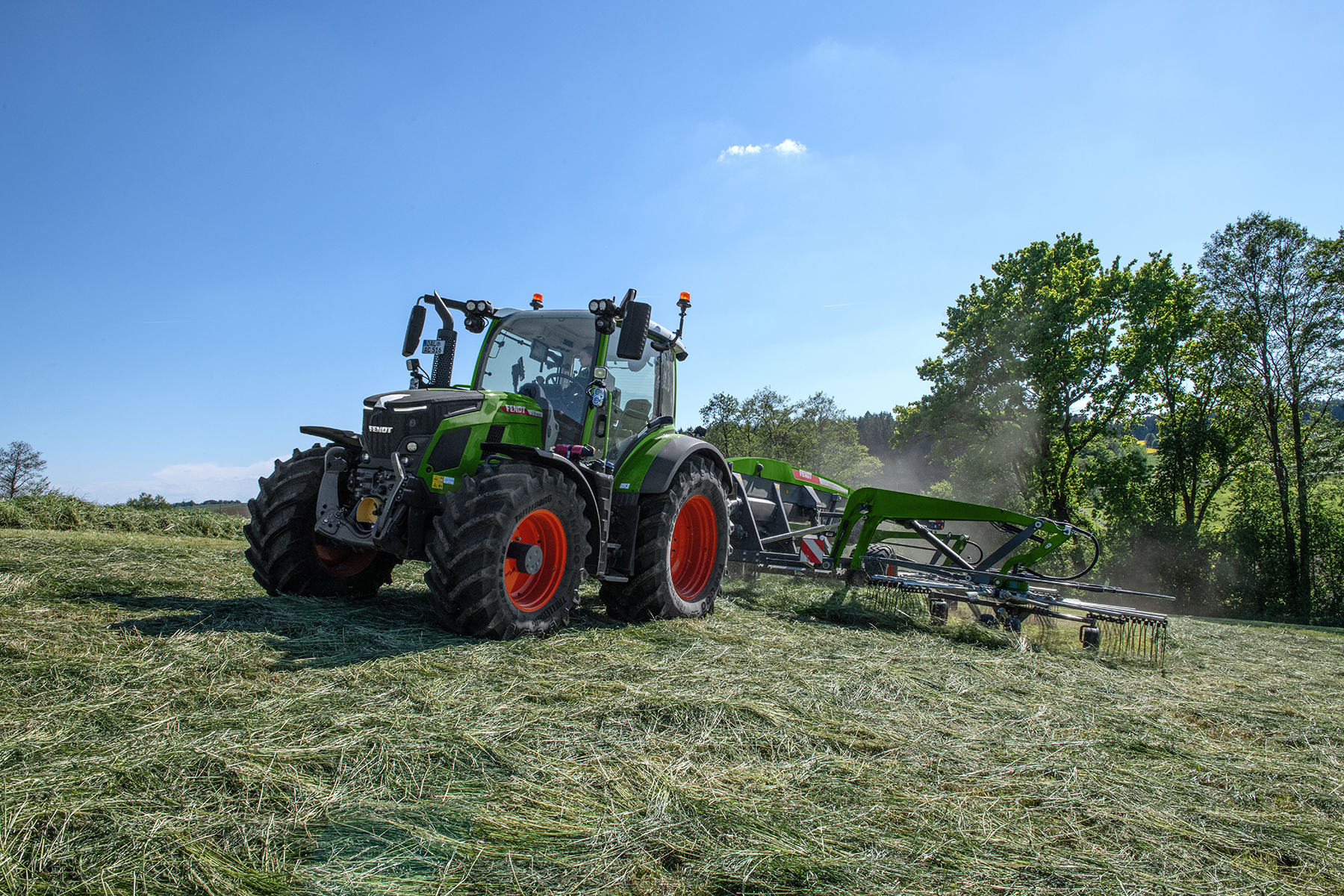

Soil-friendly and agile in grassland

With Fendt VarioDrive, tractors bring driving power to the ground without torsion, even when cornering. This protects the sward. Fendt VarioGrip increases the tractor's tyre surface area and spreads the weight of the tractor. The compact wheelbase leads to better tractor handling. The low centre of gravity helps with safety on slopes.

Specialist in transport

The comprehensive chassis, safety features, and the Fendt Reaction Steering, make the Fendt 500 Vario become a transport specialist. This includes the Fendt iD low-speed concept with only 1,300rpm at 40km/h and 1,600rpm at 50km/h, additional braking safety via a wear-free, hydraulic auxiliary brake, Trailer Brake Assistant (TBA) and automatic parking brake.

A coordinated suspension with level-adjusted front axle suspension, power lift damping, cab and seat suspension and vibration dampening provides comfortable driving on rough terrain. Optional daytime running lights increase visibility on the road.

Comfort and precision in special crops

Special crops such as potatoes, lettuces or strawberries require high precision at very low speeds, when planting beds or milling soil ridges. Equipped with the full range of Smart Farming options such as guidance systems, including automatic headland management, telemetry and control functions such as TIM, the Fendt 500 Vario series works precisely and intelligently. The guidance system ensures high precision when planting or sowing. Many different tyre options also help with adapting the tractor to operational requirements.

From mowing to winter service – Operations outside of agriculture

The single-stage Fendt VarioDrive drivetrain, along with compact dimensions, a small turning circle, high power at the PTO, interfaces and storage spaces for numerous devices, high driving comfort and various front loaders, also lend themselves to tasks outside of agriculture.

The optional heated laminated safety glass (LSG) window makes visibility easier. The front window heating speeds up defrosting, prevents new ice forming and fogging in case of snowfall. The glass does not shatter when hit by an object, and protects the driver against injury. The front window wiper is available on the right side as an option, so that a right-sided mower can be monitored and controlled. Complex implements and the front loader are controlled via the 3L-Joystick. Electrically adjustable, heated mirrors and municipal tyres are also factory-fitted options, along with bio-hydraulic oil that protects the environment in sensitive areas.

The Fendt 500 Vario series can be ordered from September 2025.

The first machines will be delivered from spring 2026.
